Overview of the AIM-7 Sparrow

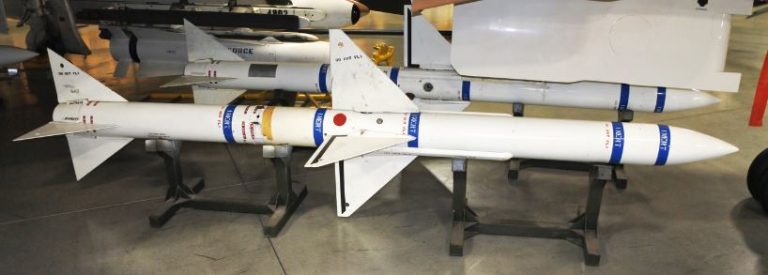

The AIM-7 Sparrow is a radar-guided, air-to-air missile that has been an integral part of various air forces since its introduction in the 1950s. Developed by the U.S. military, it was designed to engage and destroy enemy aircraft at long range, making it a key weapon in air combat. The Sparrow missile is known for its ability to lock onto targets using radar energy, allowing it to track and intercept moving aircraft at varying speeds and altitudes. It is typically launched from fighter jets and has seen use in numerous military engagements, proving its value in both air superiority and defensive operations. Over the decades, the Sparrow’s design and guidance systems have undergone several upgrades, increasing its effectiveness in modern warfare.
Purpose of the Blog
This article aims to explore the guidance system behind the AIM-7 Sparrow in detail. Specifically, we will examine how the missile uses radar technology to track and home in on its targets, the evolution of its guidance system through various versions, and how it continues to perform in complex combat scenarios. By the end of this post, you will have a clear understanding of how the AIM-7 Sparrow works, how it differs from other missile guidance systems, and why it remains a significant component of modern air combat.
What is Radar Guidance?
Radar Guidance Basics
Radar-guided missiles are a type of missile that uses radar waves to detect, track, and engage targets. Unlike infrared-guided missiles, which detect heat signatures, radar-guided missiles rely on reflected radio waves to locate their target. These missiles emit radar signals that bounce off objects in their path, with the missile’s system processing the returning signals to determine the target’s location. The key advantage of radar-guided missiles is their ability to track targets in any weather conditions, unlike infrared systems, which may struggle with fog, clouds, or other environmental factors.
Radar-guided missiles can either use active radar homing (where the missile emits its own radar signal) or semi-active radar homing, where the missile relies on radar signals from another source, such as the launching aircraft or a ground-based radar. The AIM-7 Sparrow is an example of the latter, utilizing semi-active radar homing.
Semi-Active Radar Homing
In the case of semi-active radar homing, the missile does not have its own radar transmitter. Instead, it depends on the radar energy emitted by the launching aircraft or another external radar source. The missile’s seeker head detects the reflected radar signal and uses it to adjust its flight path toward the target. This system requires continuous guidance from the launching aircraft or radar to maintain the missile’s lock on the target.
This type of guidance makes the AIM-7 Sparrow less susceptible to countermeasures compared to older infrared-guided systems. While the missile itself cannot track targets independently, the reliance on external radar helps it engage enemy aircraft even in the presence of electronic countermeasures like jamming or chaff.
How Does the AIM-7 Sparrow Guidance Work?
Radar Signal from the Launching Aircraft
One of the distinguishing features of the AIM-7 Sparrow missile is its use of semi-active radar homing, which means the missile does not carry its own radar system. Instead, it relies on the radar signal emitted by the launching aircraft. The aircraft’s radar continuously sends out electromagnetic waves that reflect off the target, whether an enemy aircraft or another object in the sky. The missile is equipped with a radar seeker that detects these reflected signals, and it uses the data to navigate toward the target. This reliance on the launching aircraft’s radar makes the missile dependent on the aircraft maintaining a lock on the target during the missile’s flight. This form of radar guidance enables the Sparrow to engage targets beyond the missile’s immediate line of sight.
Homing on Reflected Radar Energy
The process of homing in on reflected radar energy is crucial to how the AIM-7 Sparrow tracks its target. Once the missile is launched, it begins to receive radar energy that bounces off the target, much like a sonar system detects objects underwater. The missile’s radar seeker is designed to differentiate between the reflected signals and background noise. By analyzing the frequency and strength of these reflections, the missile can determine the relative position of the target in terms of direction, distance, and velocity. As the missile homes in on the target, it makes adjustments to its flight path, ensuring it stays locked onto the target until it intercepts. This method allows the Sparrow to track fast-moving aircraft at significant ranges.
Continuous Wave (CW) vs. Pulse Doppler Radar
The AIM-7 Sparrow uses two primary radar guidance modes: Continuous Wave (CW) radar and Pulse Doppler radar. These modes offer distinct advantages, and the missile can switch between them depending on the situation.
- Continuous Wave (CW) Radar: In CW radar mode, the missile continuously emits a signal, and the seeker detects the return signal reflected off the target. This mode is simple and effective for tracking targets that are relatively easy to detect, such as non-stealth aircraft. However, CW radar can struggle in cluttered environments, where background interference may confuse the missile’s radar system.
- Pulse Doppler Radar: Pulse Doppler radar, used in more advanced models of the AIM-7, sends out short bursts or pulses of radar energy instead of a continuous signal. This allows for better discrimination between moving targets and stationary background clutter. Pulse Doppler radar is particularly useful in detecting targets that are moving quickly, such as enemy aircraft in combat situations. It is also more resistant to electronic countermeasures like jamming and chaff, making it a significant improvement over earlier radar systems.
Improvements in Guidance with Each Version
Evolution of the Sparrow’s Guidance
The AIM-7 Sparrow missile has undergone several key upgrades since its introduction, especially in its guidance system. Earlier versions of the missile used basic radar homing technology, but with the advancement of radar and missile technology, newer models incorporated more sophisticated systems. As each version evolved, the missile’s radar guidance was improved to increase its range, accuracy, and resistance to countermeasures.
The AIM-7F and Later Models
The AIM-7F, introduced in the 1970s, marked a significant leap forward with the introduction of Pulse Doppler radar. This enhancement allowed the Sparrow to track targets more accurately, even in environments with heavy electronic interference, such as radar jamming. The addition of Pulse Doppler radar enabled the missile to detect high-speed targets, making it more effective in modern combat scenarios. Later versions like the AIM-7M and AIM-7P further refined these improvements, increasing both the missile’s lethality and its ability to avoid countermeasures.
Resistance to Electronic Countermeasures
A major challenge for radar-guided missiles is their vulnerability to electronic countermeasures, such as jamming or the use of chaff, which are designed to confuse or disrupt the missile’s guidance system. The Pulse Doppler radar in newer Sparrow versions significantly improved resistance to these tactics. Unlike CW radar, which can be easily disrupted by jamming, Pulse Doppler radar is much harder to deceive because it can differentiate between the target’s signal and the noise caused by countermeasures. This improvement has made the AIM-7 Sparrow more reliable and effective in complex, high-threat environments.
The Lofting Capability
What is Lofting?
Lofting is a flight maneuver used by some air-to-air missiles, including the AIM-7 Sparrow, to gain altitude after launch. Rather than following a direct trajectory toward the target, the missile initially ascends to a higher altitude before descending toward the target. This technique allows the missile to conserve energy and achieve greater maneuverability. The lofting trajectory is designed to maximize the missile’s speed and performance by taking advantage of the altitude for better targeting and interception capabilities. Lofting also provides the missile with more time to track and engage its target, enhancing its overall effectiveness, especially in high-speed combat scenarios.
Advantages of Lofting
The lofting capability offers several advantages that significantly improve the AIM-7 Sparrow’s performance. By ascending after launch, the missile gains valuable altitude, which provides several benefits:
- Energy Conservation: By reaching a higher altitude before descending, the missile can use the energy it gains at the peak of its flight to increase speed and maneuverability during the interception phase.
- Increased Maneuverability: Lofting allows the missile to adjust its flight path more effectively as it gains energy at higher altitudes. This makes it more agile when trying to evade enemy countermeasures or when responding to rapid target maneuvers.
- Improved Range: The lofting trajectory can increase the missile’s range, as it helps to optimize the missile’s energy for a longer engagement distance.
- Better Intercept Geometry: By flying at higher altitudes, the missile can better intercept targets at varying angles and speeds, improving its chances of successfully striking a moving target in complex air combat.
Different Models of the AIM-7 Sparrow
Overview of Different Versions
The AIM-7 Sparrow missile has undergone numerous iterations since its introduction in the 1950s, with each version introducing key improvements in its guidance, warhead, and overall performance. Some of the most notable versions include:
- AIM-7E: The first operational version of the Sparrow, which introduced the semi-active radar homing system.
- AIM-7F: Introduced in the early 1970s, this version featured Pulse Doppler radar, which allowed for better performance in cluttered environments and improved resistance to jamming.
- AIM-7M: Deployed in the 1980s, this version improved radar guidance, warhead lethality, and resistance to countermeasures, including jamming and chaff.
- AIM-7P: An upgraded version of the AIM-7M with enhanced performance in high-density targets and the addition of more advanced electronic counter-countermeasures.
Guidance and Performance Improvements
Each version of the AIM-7 Sparrow introduced significant advancements in both guidance and performance. The early models like the AIM-7E relied on basic semi-active radar homing, but as technology progressed, newer versions like the AIM-7F and AIM-7M integrated Pulse Doppler radar, which provided superior target tracking capabilities in hostile environments with radar jamming.
Additionally, the warhead lethality improved with each model. The AIM-7M, for instance, featured a more powerful warhead, increasing the missile’s probability of destroying the target upon impact. Resistance to electronic countermeasures was also enhanced, with Pulse Doppler radar making the missile less susceptible to countermeasures like chaff and radar jamming. These upgrades allowed the AIM-7 Sparrow to maintain its relevance as a key air-to-air missile in modern combat scenarios, providing enhanced range, accuracy, and resistance to enemy tactics.
Radar Lock-On and Targeting Modes
Boresight vs. Radar Lock-On
The AIM-7 Sparrow missile uses two primary targeting modes: boresight mode and radar lock-on mode. These modes play a crucial role in determining how the missile locks onto and engages its target.
- Boresight Mode: In boresight mode, the missile is guided toward the target based on the radar’s direct line of sight from the launching aircraft. This means that the aircraft’s radar is pointed directly at the target, and the missile locks onto this radar signal for guidance. Boresight mode is typically used when the target is within a narrow field of view, offering a straightforward and rapid lock-on. It’s particularly useful in situations where the target is within the immediate range and direct line of sight, providing a quick reaction time.
- Radar Lock-On Mode: Radar lock-on mode, on the other hand, allows the missile to lock onto the target’s radar signal even when the aircraft does not have a direct line of sight. This mode is typically employed when the target is off-axis or located in a cluttered environment. The missile can acquire and track the target using radar reflections, which may come from the target itself or from the surrounding environment, enhancing the missile’s ability to engage a target that might otherwise be difficult to track.
Flexibility in Targeting
The ability to switch between boresight and radar lock-on modes provides significant flexibility in targeting, allowing the AIM-7 Sparrow to engage a wide range of targets under varying conditions. The boresight mode offers a quick, effective way to hit close-range targets in a straightforward combat scenario, while radar lock-on mode enables the missile to track and engage targets at longer ranges or in more complex combat environments, such as when targets are obscured by terrain or clutter. This versatility allows the missile to be effectively used in both air-to-air combat and in situations where targets may employ countermeasures like jamming or chaff.
Conclusion
Summary of Key Points
The AIM-7 Sparrow’s guidance system combines the advantages of radar homing, lofting, and flexibility in targeting to deliver high-performance capabilities. Using semi-active radar homing, the missile relies on radar signals from the launching aircraft to track and engage targets. The addition of lofting enhances the missile’s energy efficiency and maneuverability, improving its chances of hitting high-speed or evasive targets. Over time, each version of the Sparrow, such as the AIM-7F and AIM-7M, introduced significant improvements in guidance accuracy, resistance to countermeasures, and warhead lethality. The introduction of radar lock-on and boresight targeting modes further expanded the missile’s operational flexibility, enabling it to engage targets under a variety of combat scenarios.
The Importance of AIM-7 in Modern Combat
The AIM-7 Sparrow remains a vital component of modern air-to-air combat, providing fighter aircraft with an essential weapon for engaging enemy aircraft at both short and medium ranges. With its advanced radar homing system, lofting capability, and evolving resistance to electronic warfare, the AIM-7 continues to serve as a reliable and versatile missile for air forces around the world. Its continued relevance in modern combat underscores the effectiveness of radar-guided missiles in overcoming the challenges posed by modern adversaries and complex combat environments.
